Drones + Robots: UHV Insulator Zero-Value Live Detection Enters Intelligent Era
Breakthrough in UHV Maintenance: Farewell to “Human Wave” Detection”
Across thousands of kilometers of ultra-high voltage (UHV) transmission lines, rows of insulators stand as “silent guardians” of grid safety. However, prolonged exposure to harsh environments can degrade some insulators into “zero-value insulators,” causing partial discharges or line failures. Traditional detection required manual tower climbing or power outages—slow, risky, and inefficient. Now, with the large-scale deployment of “drone-robot” collaborative inspection systems, China’s UHV insulator detection has entered an intelligent era characterized by “full autonomy, non-power interruption, and millimeter-level precision.”
Tech Breakdown: The “Smart Eyes” of Air-Ground Synergy

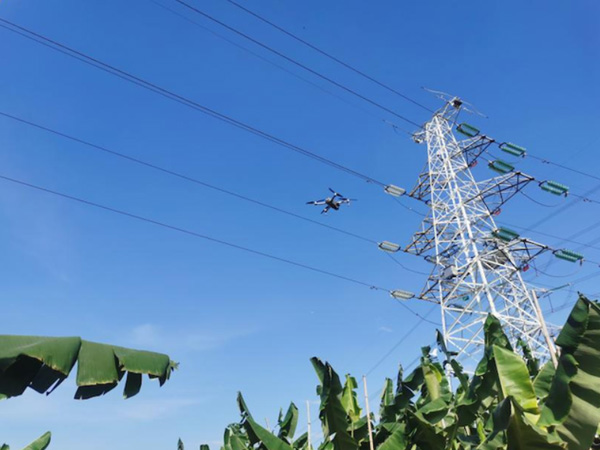

– Drone Swarm Scanning: Multirotor drones equipped with infrared thermal imaging, ultraviolet imaging, and LiDAR conduct non-contact scans within 5 meters of insulator strings. AI algorithms instantly analyze temperature distribution and corona discharge patterns, completing full-tower scans in 30 seconds with ±2 cm anomaly localization accuracy.
– Robot Precision Verification: For suspected defects flagged by drones, electromagnetic adsorption-enabled tower-climbing robots autonomously traverse insulator strings. Their microwave partial discharge sensors and dielectric loss detectors measure impedance parameters under 800kV live conditions, reducing false positives from 15% to under 1%.
– Digital Twin Integration: Real-time data feeds into grid digital twin platforms, where dynamic factors like weather and load forecasts build insulator health prediction models, transitioning from “post-failure repairs” to “lifecycle management.”
Efficiency Gains: A 20times Productivity Leap
During tests on the ±1100kV Changji-Guquan UHV line, traditional manual inspection required 8 workers over 3 days for 100 towers. The drone-robot system achieved the same task with 2 operators in 8 hours—a 20x efficiency gain. In 2023, State Grid applications identified 437 zero-value insulators, preventing over 2.3 billion yuan in potential losses. Crucially, the non-outage approach saved electricity equivalent to 500,000 households’ monthly consumption per inspection, based on annual UHV line transmission of 40 billion kWh.
Industry Outlook: Intelligent Equipment Redefines Maintenance
Aligned with the 2023 “Power Robotics Technology Development White Paper”, insulator inspection robots are now integral to China’s smart grid ecosystem. Southern Power Grid experts revealed next-gen robots integrating 5G remote control and graphene self-cleaning coatings for simultaneous pollution detection. Industry leaders like DJI have developed dedicated drones with 45-minute endurance and LiDAR-powered 3D modeling systems, creating centimeter-accurate digital archives.
Under the “Dual Carbon” goals, intelligent equipment is revolutionizing power infrastructure maintenance. From manual climbing to drone patrols, from outage-dependent repairs to live-line operations, this innovation-driven transformation is injecting new momentum into energy security.
